Absorptionem selectivam vitream Filtra

Viridis optical Filter Vitri

Vitrum colum opticum viridis est materia colum optica specie destinata ad spectrum viridis luminis selective eliquandum. Solet usus est ut proprias aequalitates viridis lucis pertranseat dum suppressis aliis aequalitatibus, praesertim caeruleo et rubeo. Ob proprietates singulares opticas, vitrum opticum viride applicationes in variis campis amplis habet, in iis systemata imaginativa, analysi spectralis, magna vigilantia, et apparatum medicorum, praesertim in applicationibus spectris potestatem altam praecisionem requirentes.

  • Viridis optical Filter Vitri
  • Viridis optical Filter Vitri
  • Viridis optical Filter Vitri
  • Viridis optical Filter Vitri
  • Viridis optical Filter Vitri
  • Viridis optical Filter Vitri
  • Viridis optical Filter Vitri
  • Viridis optical Filter Vitri
  • Viridis optical Filter Vitri
  • Viridis optical Filter Vitri
  • Viridis optical Filter Vitri
PRAECEDENS：Insulating Filter Vitri   |    SEQUENS：Cyan-Blue selectivam absorptionem vitream Filtra

+ Continge nos

Parametri producti

Numerus Crassitudo (mm) A[2856k] D65 Chemical stabilitas ND α×10-7(/℃) Tg(℃) Ts(℃) S
x y Y x y Y DA DW
LB1 2 0.328 0.593 24.6 0.268 0.586 28.2 1 3 1.524 96 535 599 2.52

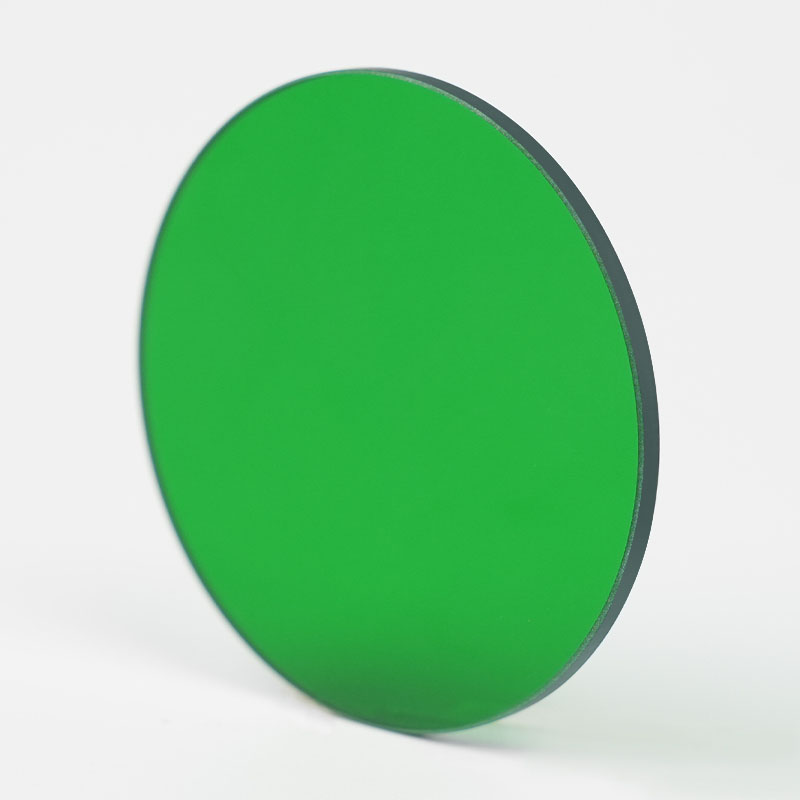

LB2 2 0.25 0.669 9.7 0.216 0.658 11.9 1 2 1.524 96 535 599 2.52

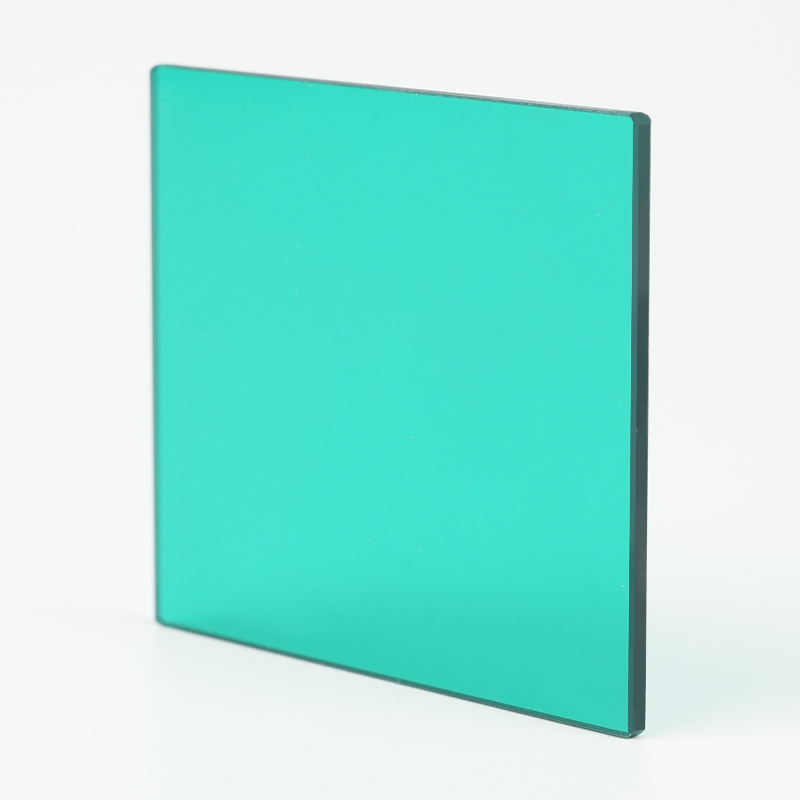

LB3 2 0.252 0.502 23.7 0.196 0.374 29.3 1 1 1.523 98 526 597 2.52
LB4 2 0.23 0.516 16.3 0.183 0.387 20.7 1 1 1.523 89 525 598 2.52

Technical Specifications pro Vitro viridi

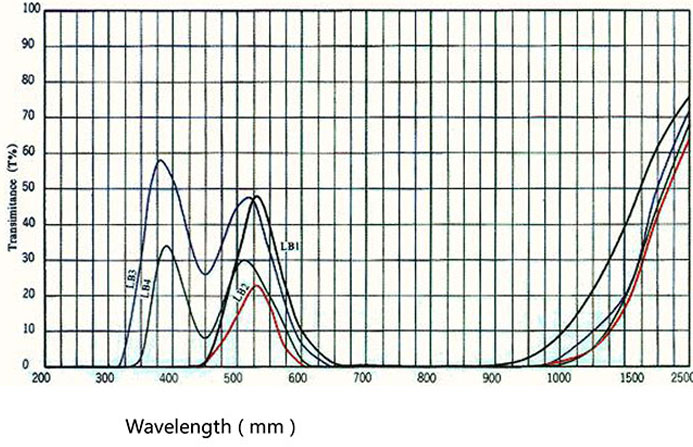

Numerus Crassitudo (mm) 430(nm) 450(um). 520(um). 530(um). 650(um) Numerus Crassitudo (mm) 430(nm)
LB1 2 ≤0.4 ≥41.9 ≤3.2 LB1 2 ≤0.4
LB2 2 ≤0.2 ≥18.3 ≤0.2 LB2 2
LB3 2 15.2~29.0 ≥40.0 ≤1.7 LB3 2
LB4 2 6.0~15.9 ≥24.1 ≤0.2 LB4 2

Viridis bullae vitreae, striae, notae accentus

Numerus Bulla Verberibus Suspendisse
LB1 C-B 4 3
LB2 C-B 4 3
LB3 C-B 4 3
LB4 C-B 4 3

B. Proprietatibus Vitri Viridis

Numerus Crassitudo (mm) A[2856k] D65 Chemical stabilitas ND α×10-7(/℃) Tg(℃) Ts(℃) S
x y Y x y Y DA DW
LB6 2 0.426 0.468 71.9 0.32 0.424 73.6 6 5 1.534 100 421 463 2.83
LB7 2 0.36 0.603 25.6 0.308 0.629 28.4 1 2 1.547 104 458 526 2.85
LB8 2 0.496 0.459 34.9 0.42 0.475 32.3 1 2 1.523 2.52

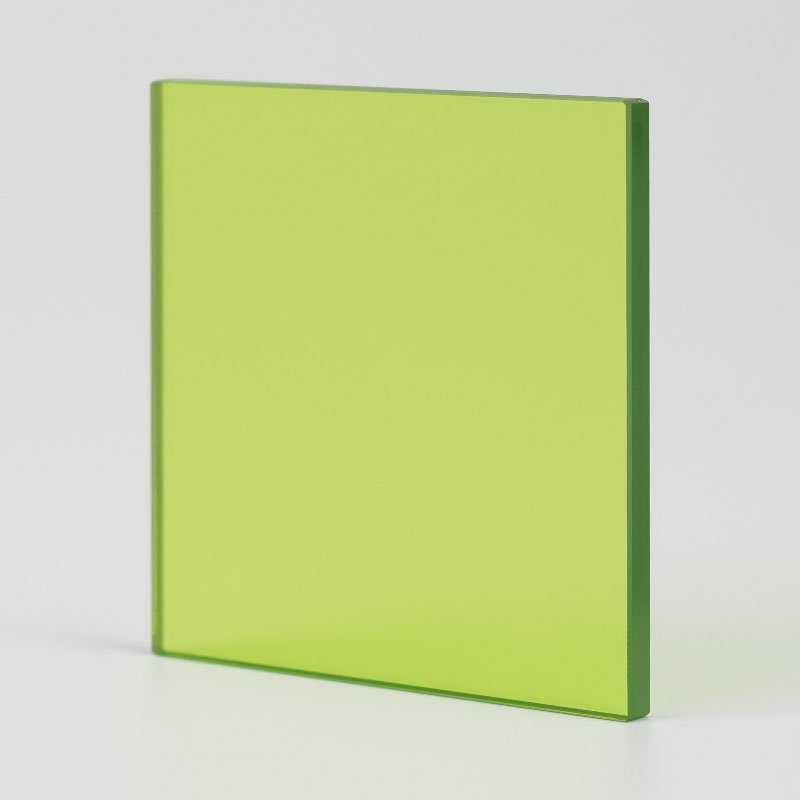

LB9 2 0.462 0.452 86.7 0.353 0.429 85.2 1 2 1.547 104 458 526 2.85

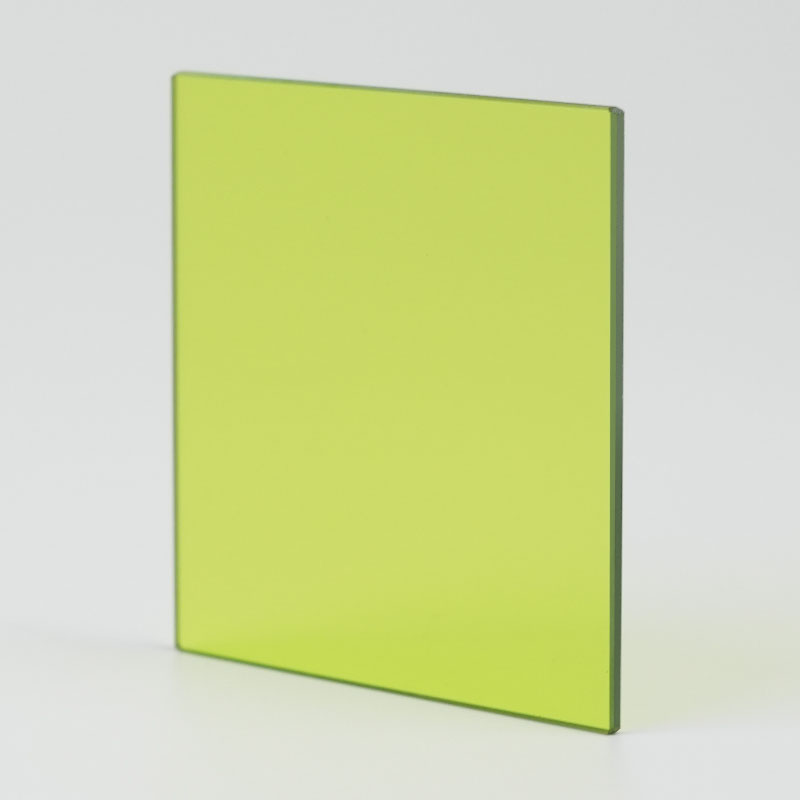

LB10 2 0.472 0.477 79.2 0.383 0.495 77.6 1 3 1.547 104 458 526 2.85

Technical Specifications pro Vitro viridi

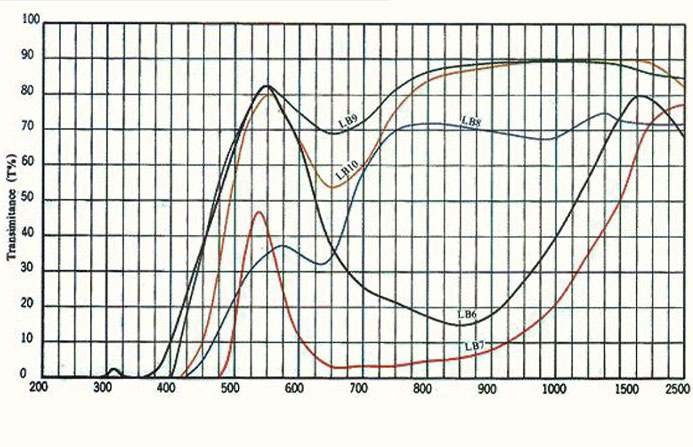

Numerus Crassitudo (mm) 400(nm) 420(nm).. 460(nm).. 480(nm).. 550(um). 560(nm).. 620(nm).. 650(um) 660(nm)..
LB6 2 41.7~50.1 ≥79.4 25.1~33.1
LB7 2 ≤8.0 545
32.0~45.0 		≤8.0
LB8 2 ≤1.3 30.3~43.9 640
25.2-40.0
LB9 2 ≤2.0 ≥82.0 65.0~70.0
LB10 2 ≤1.0 ≥72.0 50.0~60.0

Viridis bullae vitreae, striae, notae accentus

Numerus Bulla Verberibus Suspendisse
LB6 C 3C 4
LB7 C-B 3C 3
LB8 C-B 3C 3
LB9 C-B 3C 3
LB10 C-B 3C 3

Viridis Vitri Proprium

Numerus Crassitudo (mm) A[2856k] D65 Chemical stabilitas ND α×10-7(/℃) Tg(℃) Ts(℃) S
x y Y x y Y DA DW
LB11 2 0.435 0.528 53 0.364 0.56 54.4 1 2 1.547 104 458 526 2.85
LB12 2 0.463 0.433 87.3 0.342 0.388 84.9 3 4 1.536 95 534 606 2.73
LB13 1 0.352 0.568 15.1 0.284 0.554 16.9 1 3 1.527 98 597 663 2.53
LB14 1 0.369 0.576 8.9 0.307 0.588 9.8 1 3 1.527 98 597 663 2.53
LB15 1 0.351 0.601 2.2 0.299 0.617 2.5 1 3 1.527 98 597 663 2.53

Technical Indices

Numerus Crassitudo (mm) 360(nm). 420(nm).. 480(nm).. 540(nm). 550(um). 620(nm).. 650(um) 680(um).
LB11 2 ≤0.4 ≥65.0 17.0~24
LB12 2 ≤0.8 ≥79.4 ≥72.5
LB13 2 ≤13.8 17.4~30.3 ≤12.6
LB14 2 ≤7.6 7.6~17.4 ≤8.1
LB15 2 ≤3.2 ≥2.0 ≤4.2

Classis Bullae, Stripe, Suspendisse

Numerus Bulla Verberibus Suspendisse
LB11 C-B 3C 3
LB12 C-B 3C 3
LB13 C-B 4 3
LB14 C-B 4 3
LB15 C-B 4 3

Viridis Vitri Proprium

Numerus Crassitudo (mm) A[2856k] D65 Chemical stabilitas ND α×10-7(/℃) Tg(℃) Ts(℃) S
x y Y x y Y DA DW
LB16 2 0.484 0.476 74 0.405 0.483 70.2 6 5 1.535 100 421 463 2.84

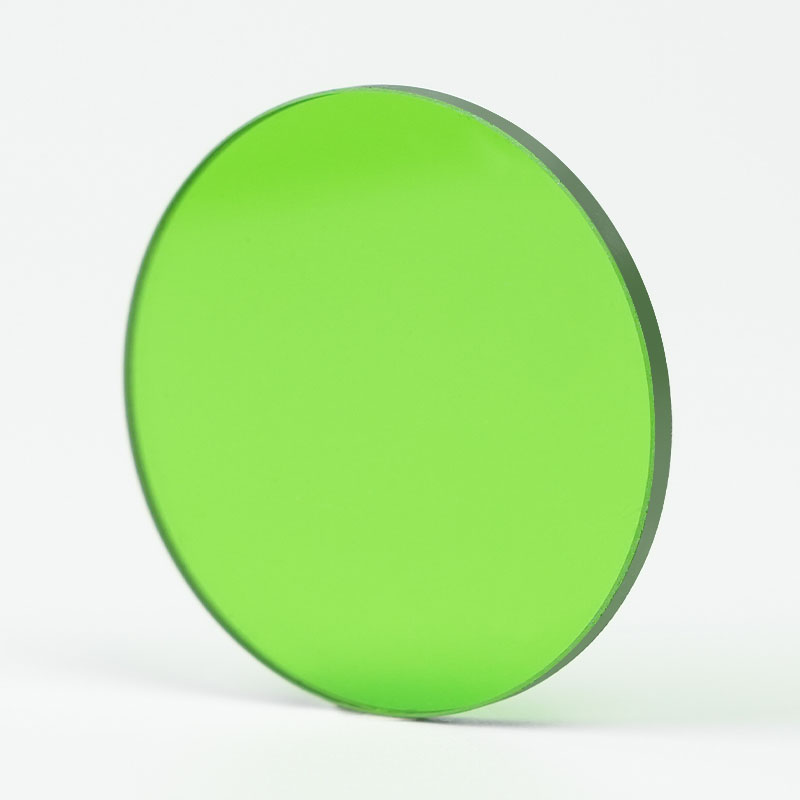

LB17 2 0.434 0.518 56.4 0.356 0.541 58 1 2 1.547 104 458 526 2.85
LB18 2 0.377 0.543 40.9 0.299 0.536 44.8 1 2 1.547 104 458 526 2.85
LB19 2 0.161 0.525 2.7 0.143 0.399 3.7 1 3 1.524 96 535 599 2.52

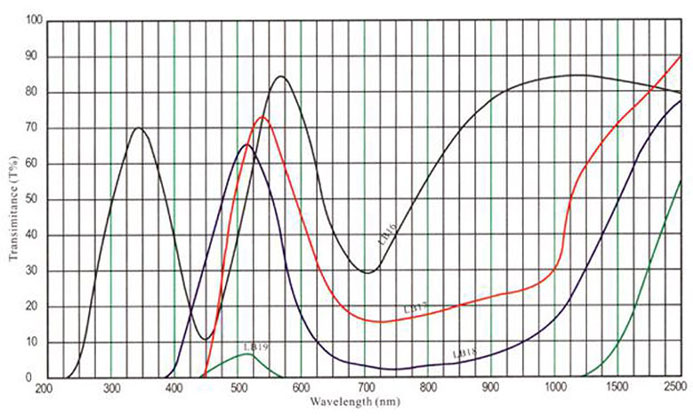

Technical Indices

Numerus Crassitudo (mm) 450(um). 460(nm).. 510(nm). 520(um). 530(um). 560(nm).. 600(nm) 660(nm).. 750(um)
LB16 2 9.0~16.0 ≥83.6 35.0~42.0
LB17 2 ≤1.5 ≥68 ≤46.0 ≤20.1
LB18 2 ≤32.8 ≥62.8 ≤18.5 ≤2.1
LB19 2 ≤3.0 6.0~10.0 ≤2.5

Classis Bullae, Stripe, Suspendisse

Numerus Bulla Verberibus Suspendisse
LB16 D-C 3C 4
LB17 C-B 3C 3
LB18 C-B 3C 3
LB19 C-B 4 3
