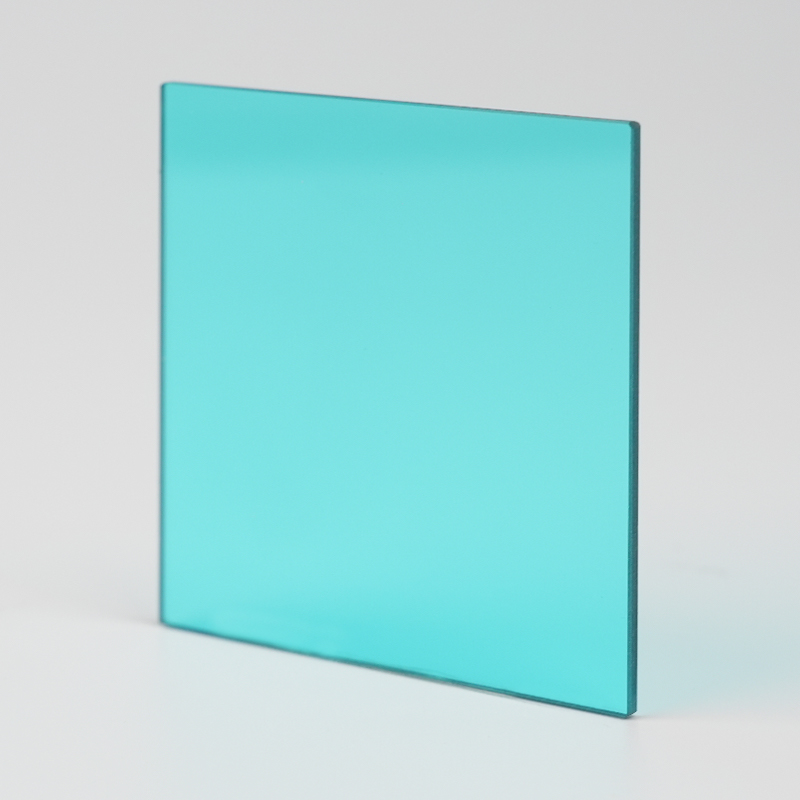

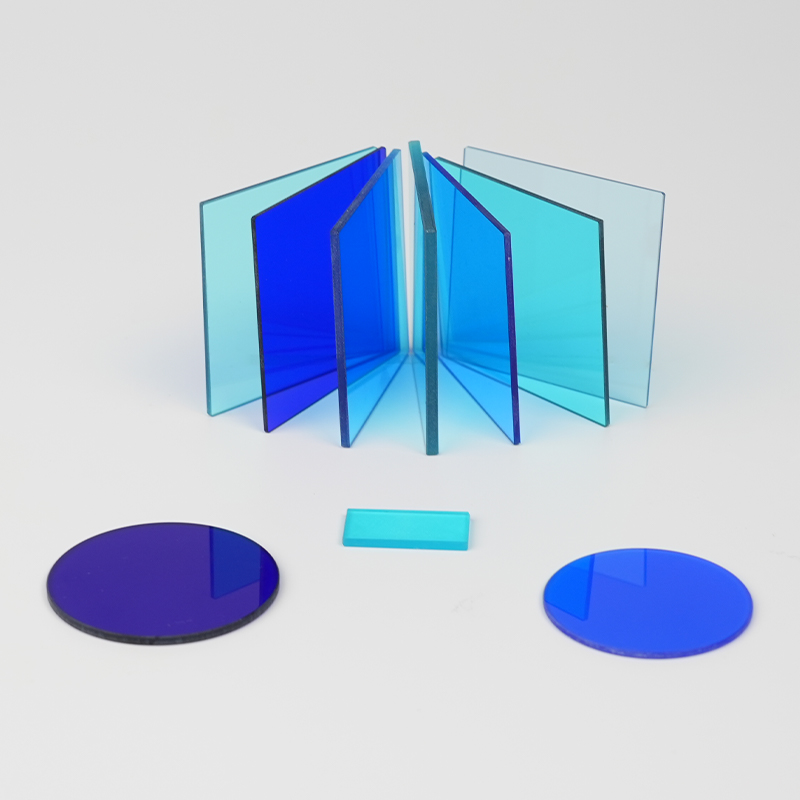

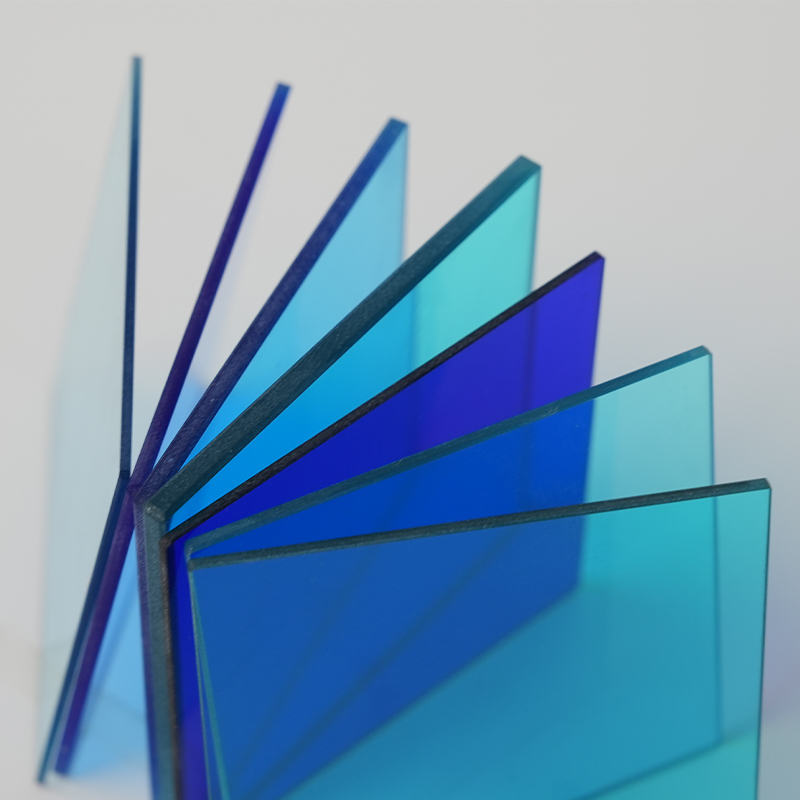

Cyan-Blue Infrared-Absorbentes Vitri Filtra

Cyan-Blue Infrared-Absorbing Filtra vitrea alta sunt operandi materias filtras opticas specie destinatas ad lumen infrarubrum trahendum intra certum necem, ut solum lumen visibile pertranseat. Hae columellae praestantem colorem reddentes facultates praebent ac communiter adhibentur in systematibus opticis ubi interventus lucis infrarubrum extenuando pendet, ut camerae, instrumenti laseris, sensoriis et instrumentis opticis. Efficaciter eliquare lumen infrarubrum, cyan-caeruleum infrarubrum-absorbens vitreas columellas imaginum qualitates meliores, ne imaginum distortio et strepitus per radiorum infrarubrum causatur. Late adhibentur in investigationibus industrialibus, scientificis, et in summo apparatu imaginatio-nis.

  • Cyan-Blue Infrared-Absorbentes Vitri Filtra
  • Cyan-Blue Infrared-Absorbentes Vitri Filtra
  • Cyan-Blue Infrared-Absorbentes Vitri Filtra
  • Cyan-Blue Infrared-Absorbentes Vitri Filtra
  • Cyan-Blue Infrared-Absorbentes Vitri Filtra
  • Cyan-Blue Infrared-Absorbentes Vitri Filtra
  • Cyan-Blue Infrared-Absorbentes Vitri Filtra
  • Cyan-Blue Infrared-Absorbentes Vitri Filtra
  • Cyan-Blue Infrared-Absorbentes Vitri Filtra
  • Cyan-Blue Infrared-Absorbentes Vitri Filtra
  • Cyan-Blue Infrared-Absorbentes Vitri Filtra
  • Cyan-Blue Infrared-Absorbentes Vitri Filtra
PREV：Cyan-Blue selectivam absorptionem vitream Filtra   |    DEINDE：Proximum productum non

+ Contactus us

Morbi condimentum

1. Characteres

Numerus Crassitudo (mm) A[2856k] D65 Chemical stabilitas ND α×10-7(/℃) Tg(℃) Ts(℃) S
x y Y x y Y DA DW
QB16 2 0.43 0.411 82.4 0.3 0.327 84.7 6 5 1.52 2.64
QB17 2 0.424 0.417 71.4 0.299 0.334 74 6 5 1.515 2.6
QB18 2 0.4 0.413 75.2 0.274 0.315 78.3 1 3 1.518 90 490 555 2.5
QB19 2 0.247 0.25 12.2 0.175 0.137 15.6 1 3 1.477 93 428 520 2.25
QB21 2 0.345 0.439 62.1 0.244 0.326 68.8 6 5 1.535 100 421 463 2.86

2. Technical Requisita

Numerus Crassitudo (mm) 400(nm) 420(nm). 450(um). 500(um) 540(nm). 650(um) 700(um) 800(nm) 1000(nm)
QB16 2 ≥88.3 ≥87.9 64.9~72.8 33.3~48.1
QB17 2 ≥69.7 27.7~44.0 ≤10.1
QB18 2 ≥88.5 80.0~87.7 25.3~59.3
QB19 2 ≥700 560≥10.0 620≤3.0 ≤13.0
QB21 2 360≥50.0 ≥83.0 680≤4.5

3. Gradientes pro Bullis, Virgis, ac Notis Accentus

Numerus Bulla Verberibus Suspendisse
QB16 D 3C 3
QB17 D 3C 3
QB18 D 3C 3
*QB19 D-C 4 3
QB21 D 3C 4

4. Spectrale Diagram

1. Characteres

Numerus Crassitudo (mm) A[2856k] D65 Chemical stabilitas ND α×10-7(/℃) Tg(℃) Ts(℃) S
x y Y x y Y DA DW
QB23 2 0.207 0.385 20.8 0.165 0.248 27.7 1 2 1.517 93 477 550 2.56

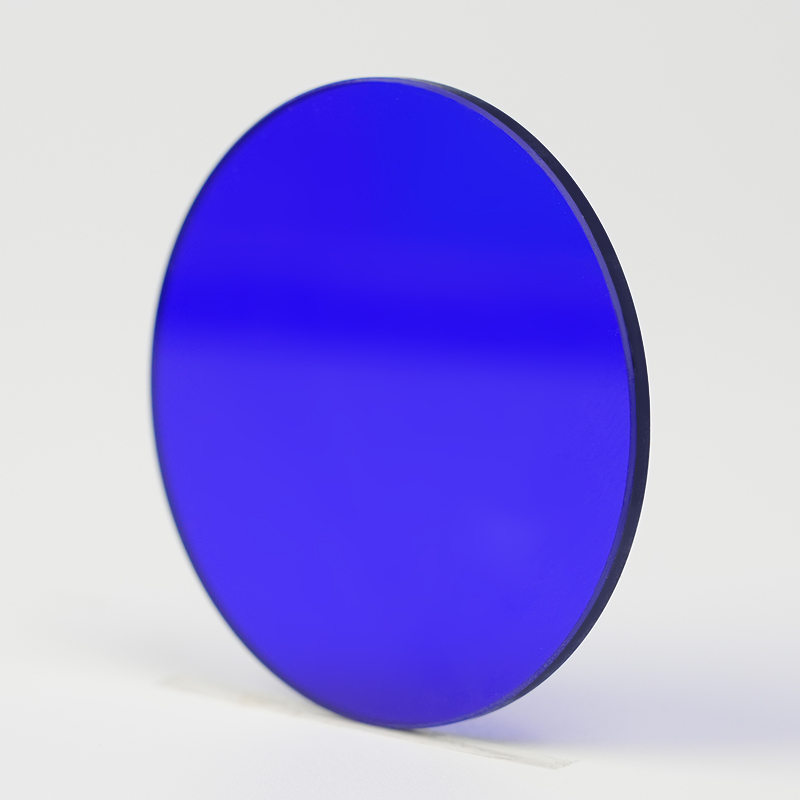

QB24 2 0.149 0.035 0.7 0.153 0.028 1.9 4 3 1.513 93 477 550 2.56
QB26 2 0.318 0.47 42.4 0.233 0.36 48.5 6 5 1.536 74 549 624 2.82

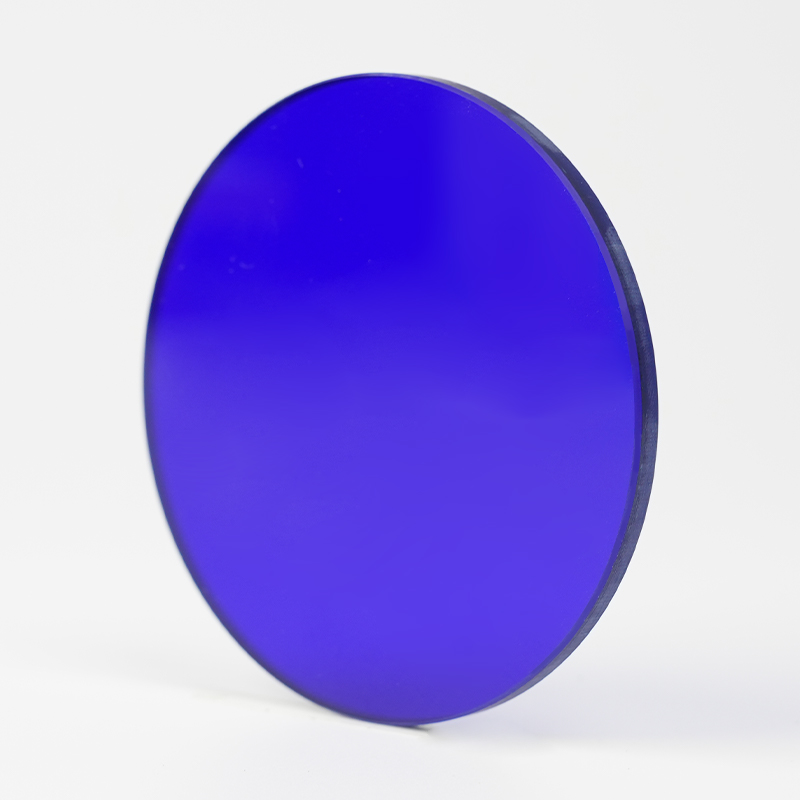

QB29 2 0.151 0.033 0.7 0.154 0.026 1.8 1 2 1.517 93 477 550 2.56

2. Technical Requisita

Numerus Crassitudo (mm) 320(nm). 334(nm). 350(nm) 405(nm).. 480(nm). 600(nm) 633(nm).. 694(nm).. 750(um)
QB23 2 ≤4.0 ≥60.3 ≤0.1
QB24 2 ≤14.7 ≥68.0 ≤19.4 ≤0.1 ≤0.9
QB26 2 ≥10.6 510≥70.9 633≤5.7 ≤5.7 ≤0.1
QB29 2 ≤23.0 380≥83.0 ≤22.0 ≤0.1 ≤14.7

3. Gradientes pro Bullis, Virgis, ac Notis Accentus

Numerus Bulla Verberibus Suspendisse
QB23 C - B 3C 3
QB24 C - B 3C 3
QB26 D - C 3C 4
QB29 C - B 3C 3

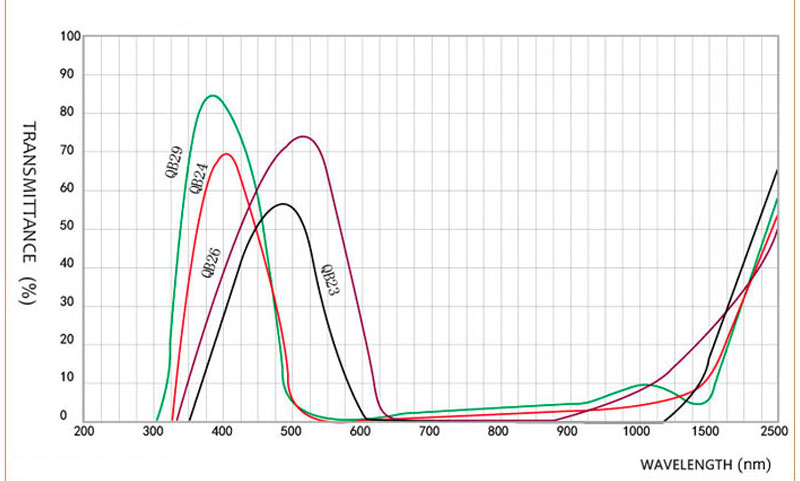

4. Spectrale Diagram

5-1. Characteres

Numerus Crassitudo (mm) A[2856k] D65 Chemical stabilitas ND α×10-7(/℃) Tg(℃) Ts(℃) S
x y Y x y Y DA DW
QB38 1 0.471 0.418 80 6 5 1.532 98 452 2.76
QB39 1 0.364 0.431 66 6 5 1.512 97 322 2.74

5-2. Technical Requisita

Numerus Crassitudo (mm) 350(nm) 405(nm).. 514(um). 633(nm).. 694(nm).. 1060(nm).
QB38 1 ≥73.6 ≥85.6 ≥87.4 ≤61.6 ≤29.4 ≤5.5
QB39 1 ≥54.6 ≥77.4 ≥84.6 ≤27.3 ≤2.7 ≤0.091

5-3. Gradientes Bullas, Virgae, et Suspendisse marcas

Numerus Bulla Verberibus Suspendisse
QB38 C - B 3C 3
QB39 C - B 3C 3

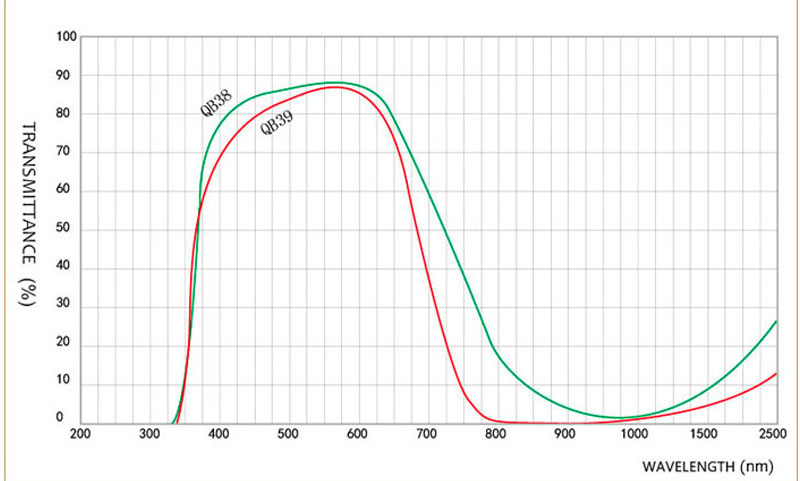

5-4. Spectrale Diagram
