Absorptionem selectivam vitream Filtra

Cyan-Blue selectivam absorptionem vitream Filtra

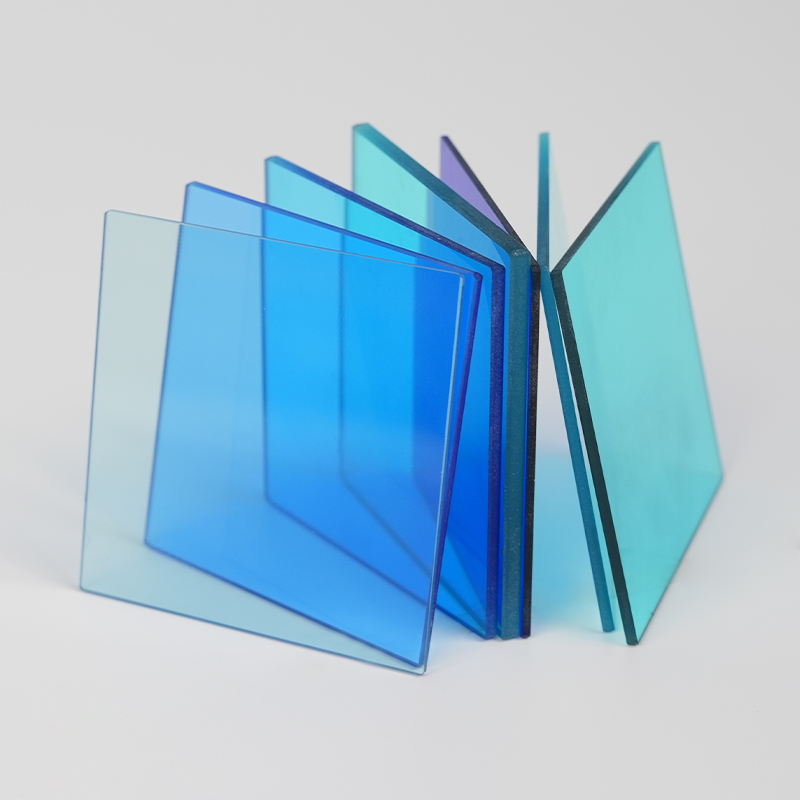

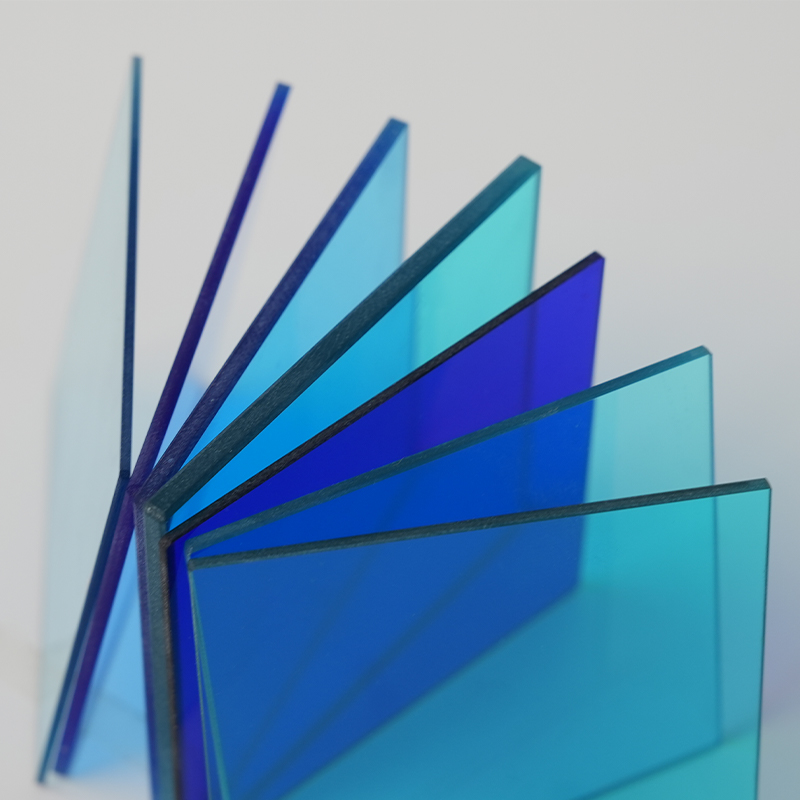

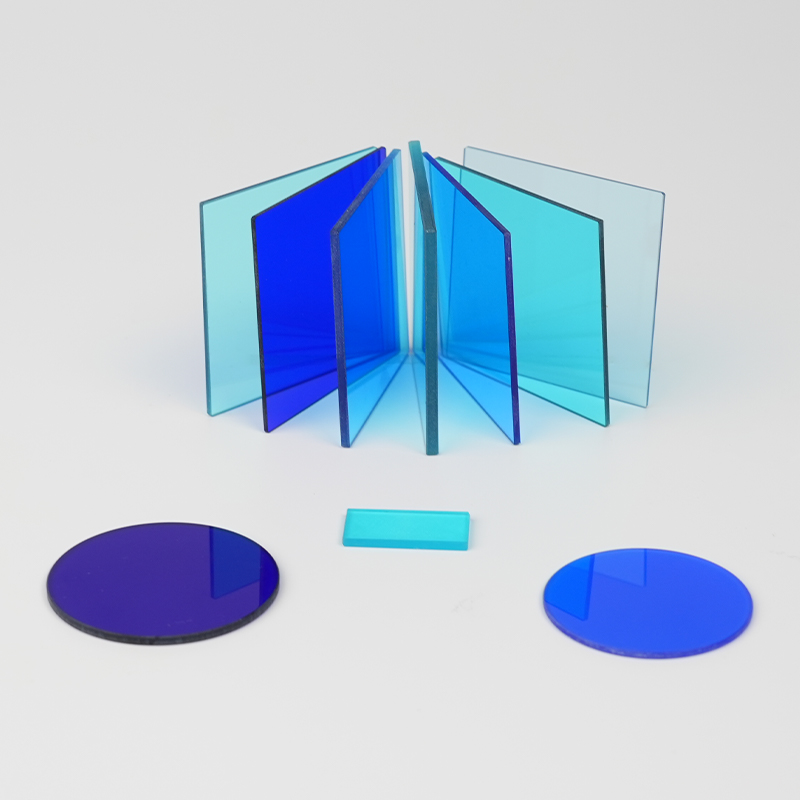

Cyan-Blue Filtra selectiva absorptionis vitreae sunt filtra optica quae lucem efficaciter hauriunt in iugis cyanis et caeruleis necem. Ordinantur ad lucem selective eliquandam cyanem et caeruleam, cum alias aequalitates lucis (ut rubrae et viridis) transire permittant. Hae filamenta praecipue adhibentur in applicationibus ad suppressionem cyani et caerulei luminis et optimiizationis spectris responsionis, et late in variis campis adhibentur sicut imaginatio optica, color correctionis, analysis spectris et vigilantia circumflexa..

PREV：Viridis optical Filter Vitri | DEINDE：Cyan-Blue Infrared-Absorbentes Vitri Filtra

+ Contactus us

Morbi condimentum

1-1. Characteres

Numerus	Crassitudo (mm)	A[2856k]			D65			Chemical stabilitas		ND	α×10-7(/℃)	Tg(℃)	Ts(℃)	S
Numerus	Crassitudo (mm)	x	y	Y	x	y	Y	DA	DW	ND	α×10-7(/℃)	Tg(℃)	Ts(℃)	S
QB1	2	0.354	0.379	44.8	0.235	0.258	49	1	3	1.52	93	477	550	2.51

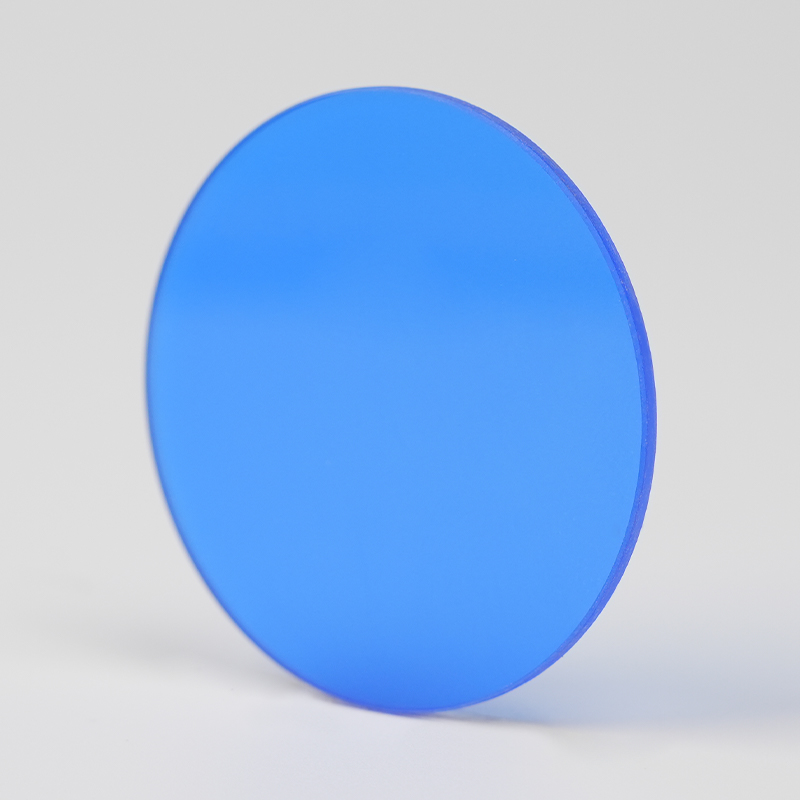

QB2	2	0.322	0.334	28.8	0.21	0.206	32.6	1	3	1.52	93	477	550	2.51

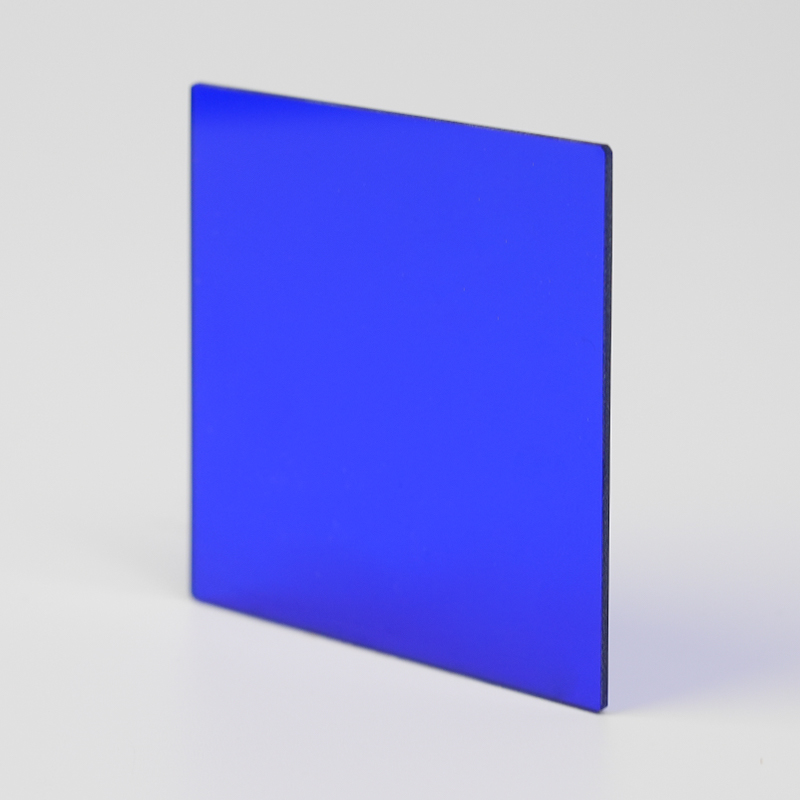

QB3	2	0.159	0.042	0.8	0.156	0.028	1.8	1	3	1.52	91	525	577	2.51
QB4	2	0.143	0.101	3	0.145	0.063	5.8	1	3	1.582	81	483	549	3.25

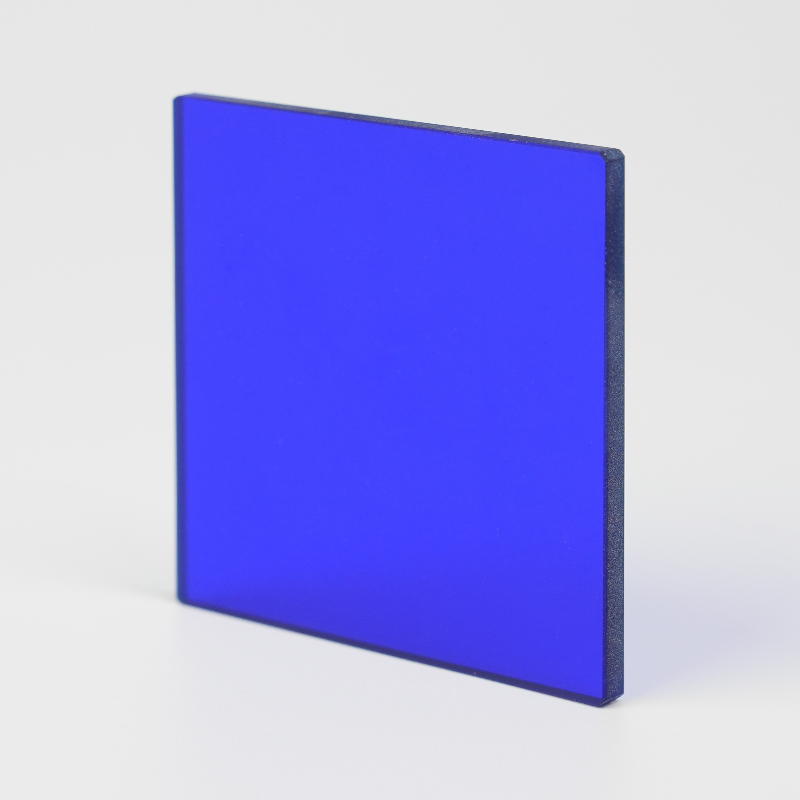

QB5	2	0.143	0.106	2.8	0.146	0.065	5.2	1	2	1.52	93	477	550	2.52

1-2. Technical Requisita

Numerus	Crassitudo (mm)	400(nm)	420(nm).	450(um).	540(nm).	600(nm)	640(nm)..	680(um).	700(um)
QB1	2		≥84.0		44.0~50.0		21.0~27.0		34.0~42.0
QB2	2	≥84.0			22.0~36.0	10.0~21.0
QB3	2			≥40.0	≤0.4			≤3.0
QB4	2		≥66.7		≤1.2				≤19.7
QB5	2		≥58.0		≤5.0				≤2.0

1-3. Gradientes Bullas, Virgae, ac Suspendisse marcas

Numerus	Bulla	Verberibus	Suspendisse
QB1	C - B	3C	3
QB2	C - B	3C	3
QB3	C - B	4	3
QB4	C - B	4	3
QB5	C - B	4	3

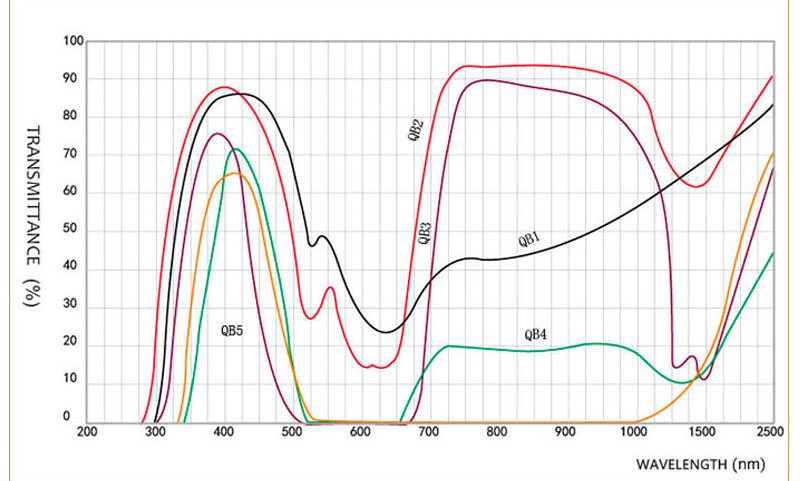

1-4. Spectrale Diagram

2-1. Characteres

Numerus	Crassitudo (mm)	A[2856k]			D65			Chemical stabilitas		ND	α×10-7(/℃)	Tg(℃)	Ts(℃)	S
Numerus	Crassitudo (mm)	x	y	Y	x	y	Y	DA	DW	ND	α×10-7(/℃)	Tg(℃)	Ts(℃)	S

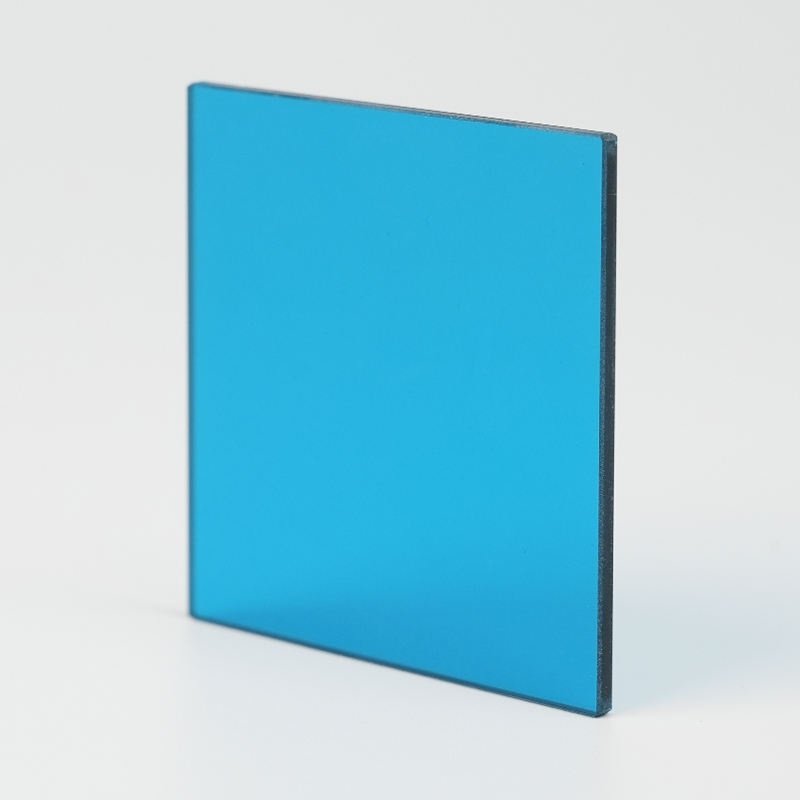

QB9	2	0.187	0.391	14.8	0.156	0.256	20.3	1	2	1.524	89	460	532	2.56

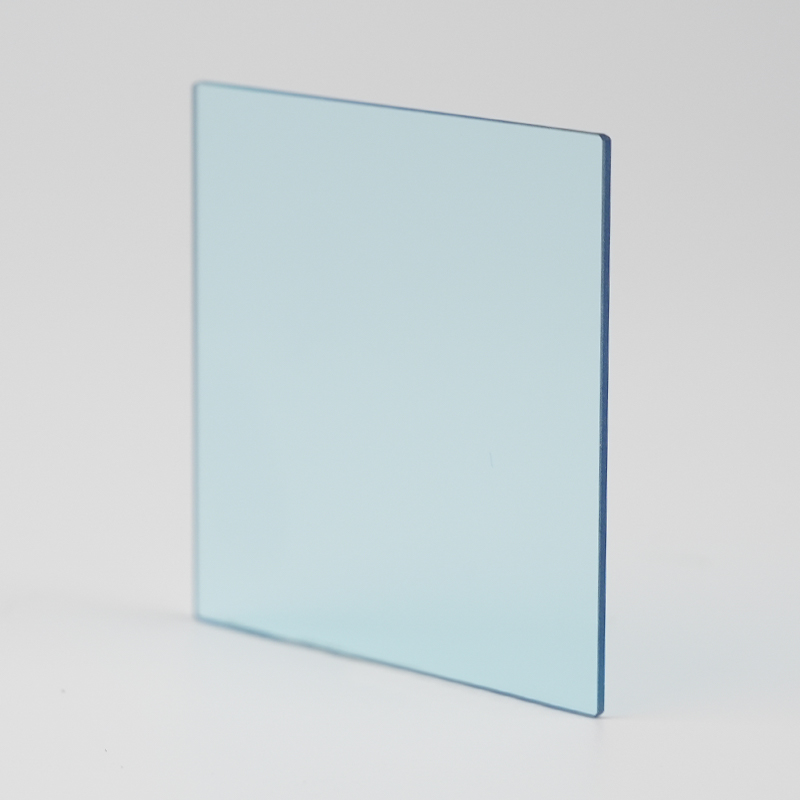

QB10	2	0.409	0.417	74.4	0.283	0.324	76.6	1	2	1.529	84	540	606	2.63
QB11	2	0.328	0.412	52	0.226	0.29	59.1	1	2	1.514	93	477	550	2.57

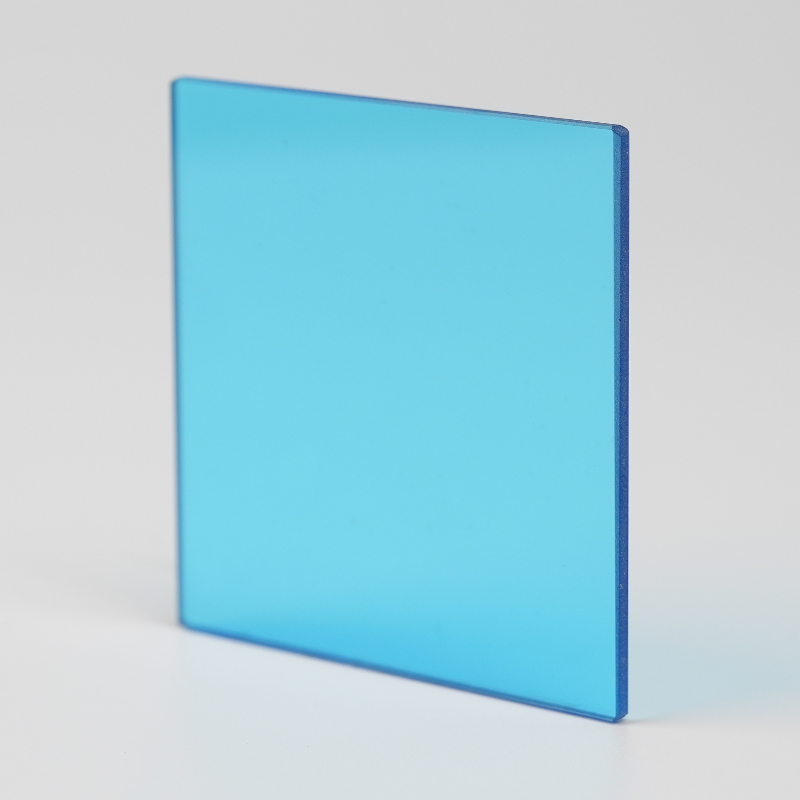

QB12	2	0.269	0.406	36.2	0.194	0.271	44.2	1	2	1.517	91	506	572	2.59
QB13	2	0.189	0.377	17.3	0.157	0.242	23.7	1	2	1.522	90	490	555	2.61

2-2. Technical Requisita

Numerus	Crassitudo (mm)	400(nm)	480(nm).	640(nm)..	680(um).	700(um)	1000(nm)
QB9	2	≥10.0	≥36.5		≤1.0
QB10	2	≥76.0				23.0~31.0	≤5.0
QB11	2	≥80.0	≥83.8			5.5~11.6
QB12	2	≥63.5	≥76.4			≤0.7
QB13	2	≥20.0	≥51.5	≤0.2

2-3. Gradientes Bullas, Virgae, ac Suspendisse marcas

Numerus	Bulla	Verberibus	Suspendisse
QB9	C - B	4	3
QB10	D	3C	3
QB11	C - B	3C	3
QB12	C - B	3C	3
QB13	C - B	3C	3

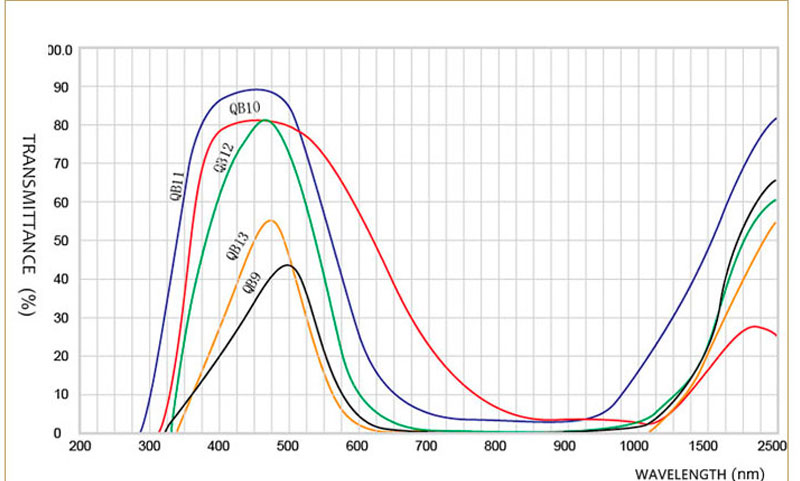

2-4. Spectrale Diagram
